The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo Carbon delivers more of everything that you love about trail riding.
-
Levo’s fully integrated Turbo Full Power 2.2 motor, 500Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
-

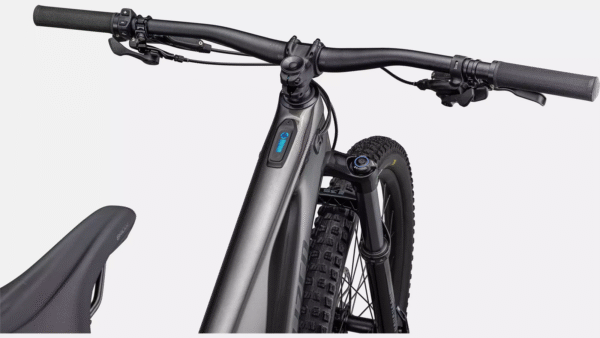

The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
-
A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
-
Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.
-
Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
-
The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Technical Specifications
E-Bike
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-500A, Integrated battery, 500Wh
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
Frameset
Frame
FACT 11m full carbon, 29″ front wheel, 27.5″ rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Fork
Rockshox 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
Brakes
Front Brake
SRAM G2 RE, S1-S3: 200mm, S4-S6: 220mm
Rear Brake
SRAM G2 RE, 200mm
Drivetrain
Shift Levers
SRAM SL SX Eagle, 12-speed
Rear Derailleur
SRAM SX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Chain
SRAM NX Eagle, 12-speed
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34T, steel
Wheels & Tires
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.6″
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5×2.6″
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Grips
Specialized Trail Grips
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Weight
Weight
23.4kg (51 lb, 9.4 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 S2 S3 S4 S5 S6 Crank Length 160mm 160mm 160mm 160mm 160mm 160mm Handlebar Width 780mm 780mm 780mm 780mm 780mm 780mm Stem Length 40mm 40mm 40mm 40mm 50mm 50mm Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm Seatpost Length 100mm 125mm 150mm 170mm 170mm 200mm Stack 605mm 617mm 626mm 635mm 644mm 653mm Reach 412mm 432mm 452mm 477mm 502mm 532mm Headtube Length 105mm 105mm 115mm 125mm 135mm 145mm Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5° 64.5° BB Height 352mm 350mm 350mm 350mm 350mm 350mm BB Drop 25mm 27mm 27mm 27mm 27mm 27mm Trail 130mm 130mm 130mm 130mm 130mm 130mm Fork Length (full) 557mm 567mm 567mm 567mm 567mm 567mm Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm Front Center 738mm 760mm 784mm 814mm 843mm 878mm Chainstay Length 442mm 442mm 442mm 442mm 442mm 442mm Wheelbase 1179mm 1200mm 1225mm 1255mm 1284mm 1318mm Bike Standover Height 752mm 776mm 783mm 787mm 788mm 790mm Seat Tube Length 380mm 390mm 405mm 425mm 445mm 465mm Seat Tube Angle 78° 77.2° 76.7° 76.2° 76.2° 76.2° Max Seatpost Insertion 210mm 220mm 240mm 255mm 275mm 295mm Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm 80mm
