KOHLER® Powered
The OPC566E is equipped with a KOHLER® Command PRO® CH440 14HP 429cc engine.

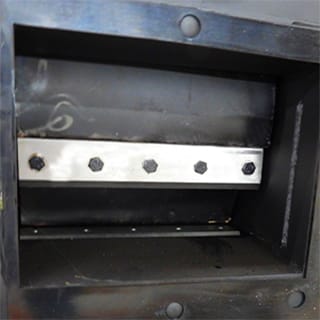

Double-Edge Reversible Cutting Blades
Reversible double-edge high-speed cutting blades

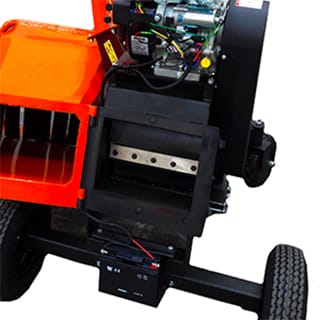

Auto-Adjusting Chipping Drum
Auto-adjusting cyclonic drum chamber deteriorates trees and brush up to 6.25″ in diameter

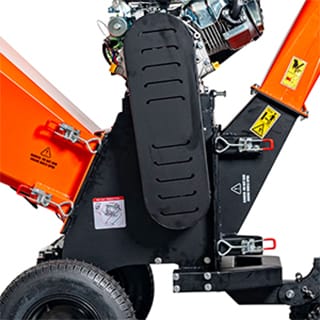

Large Swing-Open Chutes
Large, tool-free swing-open chutes for easy drum access
Pickup Truck Bed Height Expulsion Chute
59″ pickup truck bed height expulsion chute with adjustable cast iron rotating hood

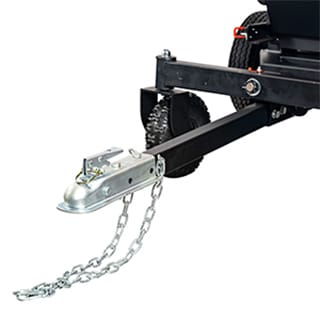

Removable Tow Bar
Removable tow bar with 2″ hitch receiver.

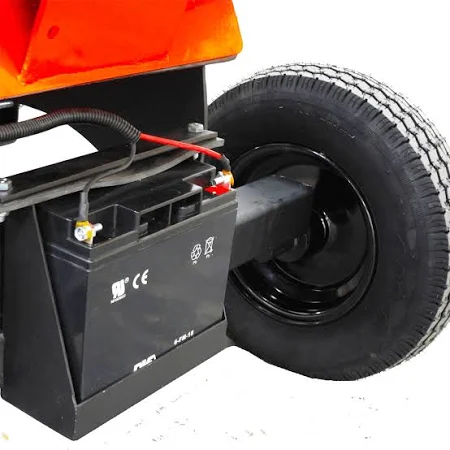

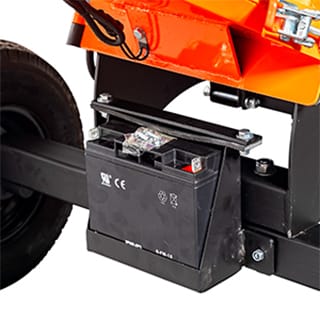

Electric Start Capability
The OPC566E comes equipped with a battery for electric start capability.

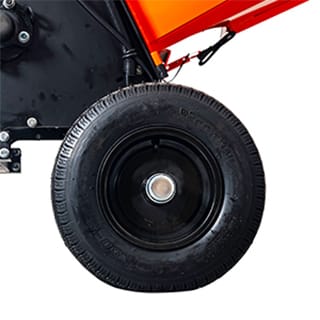

D.O.T. Approved
D.O.T. approved Ø16.5″ x 6.5″ tires for street towing up to 25mph (40km/h)
Safety Kit Included
Safety kit includes assembly tools, glasses, ear protection, and gloves.

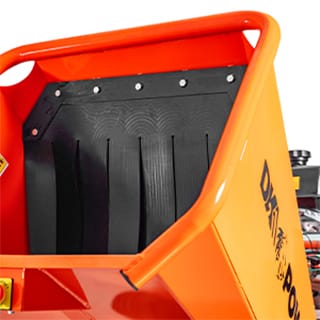

Integrated Feed Chute Handles
Integrated feed chute handles for easy equipment moving and powder-coated for durability.

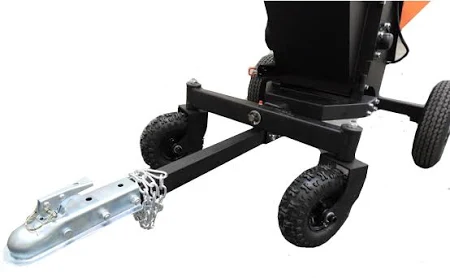

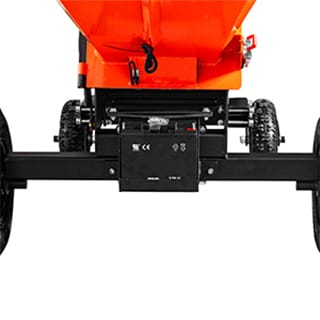

Extended Axle
Extended 48″ axle for added stability during transport

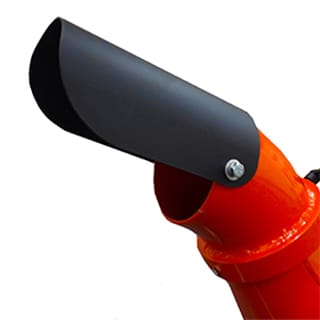

180° Expulsion Deflector
Tool-free expulsion deflector that rotates 180°

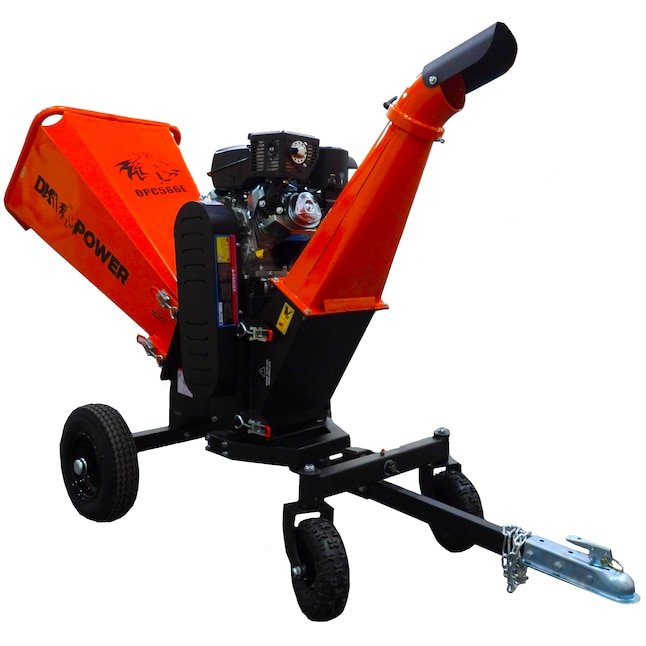

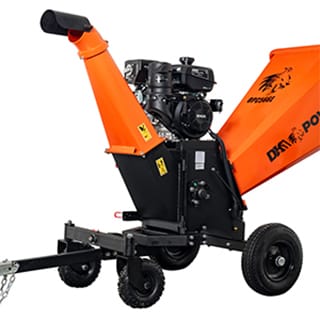

About This Product
The OPC566E is a 6-inch kinetic cyclonic chipper powered by an electric start, direct drive KOHLER Command PRO CH440 14 HP 429 cc engine with 22.7 ft/lb gross torque to demolish trees up to 6.25 inches in diameter. Equipped with double edge reversible 12-inch cutting blades that auto-adjust to pulverize trees and brush, dual tool-free swing-open chutes that quickly open for easy drum access, D.O.T. approved tires and a 38-inch axle for uneven ground and towing stability with front articulated ground wheels for easy equipment moving, a 2-inch hitch receiver and tow bar, and a rotational expulsion chute pickup truck height for easy bed loading.
Highlights
-
- Powered by a KOHLER Command PRO CH440 14 HP 429 cc engine with Electric Start
- Dual-belt drive drum transmission with 12 in. double-edge reversible cutting blades that auto-adjust for trees and brush up to 6.25 in. in diameter
- D.O.T. approved 4.80-8 15 in. O.D. tires and 4.10/4 10 in. O.D. articulated front tires sitting on a 38 in. axle with a tow bar and 2 in. ball coupler
- Includes safety kit
- Electric start (battery included)
- CE safety approved shutoff
- Dual tool-free swing-open chutes with a tool-free 180° rotational expulsion deflector on a 59 in. expulsion chute
- Extra-large feed chute with integrated equipment moving handles
- Includes 3-year KOHLER engine and 1-year DK2 chassis warranty
- Tool free rotational spout on chip chute – pickup truck bed height
- Extra-large reinforced feed hopper with integrated equipment moving handles
- 3-year Kohler and 1-year DK2 warranty
Dimensions
Product Depth (in.)
102 in
Product Height (in.)
59 in
Product Width (in.)
47 in
Details
Bag/maximum load capacity (bushels)
0
Chipper blade material
Stainless steel
Chipper capacity (in.)
6
Commercial / Residential
Commercial / Residential
Condition
New
Engine Cycles
4 Cycle
Engine Displacement (cc)
429
Engine Torque (ft.-lb.)
22.7
Engine Type
Kohler 14 HP Command PRO CH440 engine
Features
Assembly Required, Electronic Ignition, Portable, Replaceable Cutting Blade, Self-Feeding, Towable
Feed capacity (in.)
6
Fuel Tank Capacity (oz.)
236.8 oz
Horsepower (HP)
14 hp
Housing Material
Metal
Power Type
Gas
Product Weight (lb.)
594 lb
Reconditioned
No
Reduction Ratio
Direct Drive
Returnable
30-Day
Self-Feeding
Yes
Start Type
Electric
Translucent fuel tank
No
Wheels
Yes
Warranty / Certifications
Manufacturer Warranty
3-year Kohler Engine and 1-year DK2 Chassis warranty
