About This Product

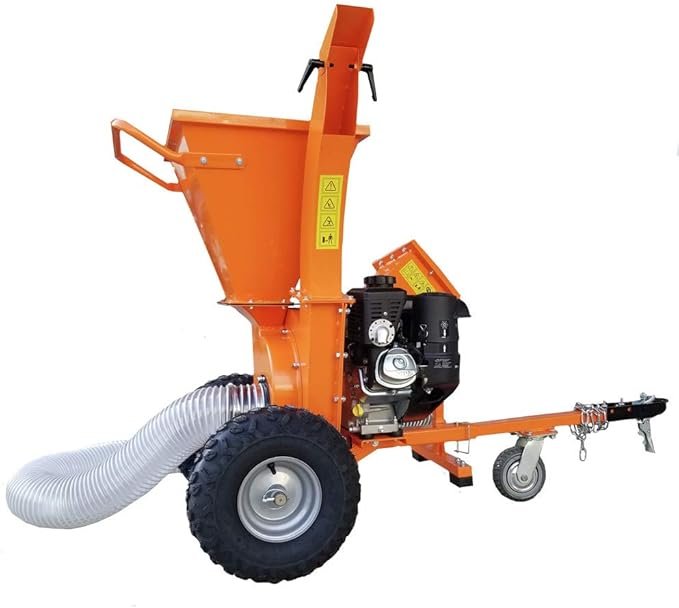

The ATV-towable 3-inch direct drive OPC503V Chipper Shredder Vacuum Combo is powered by a KOHLER Command PRO CH270 7 HP 208 cc engine. It comes equipped with double edge cutting blades made with high strength steel so they stay sharp longer. Featuring a removable vacuum kit, with direct shaft drive centrifugal force that deteriorates trees, branches, leaves, and garden composting with ease and has a 4-stage cyclonic air filter system in the KOHLER engine, auto-blade feeding, a removable key lock shutoff, and ATV-locking off-road tires.
Highlights

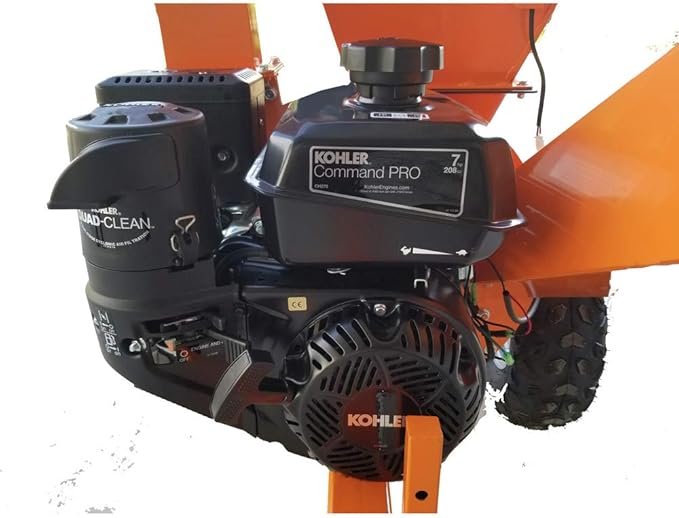

- Powered by a KOHLER Command PRO CH270 7 HP 208 cc engine

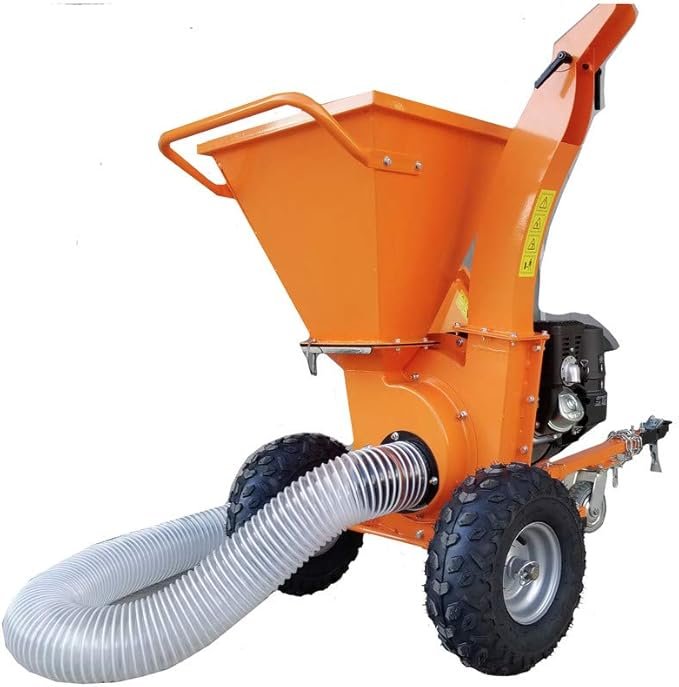

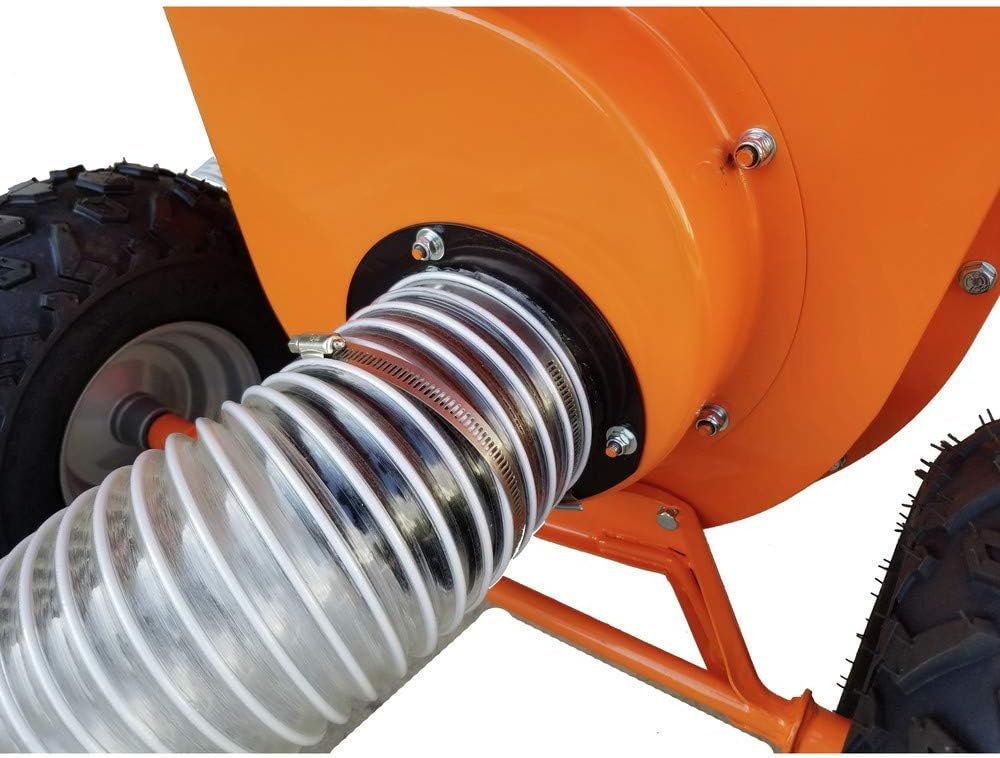

- Removable vacuum kit included
- Chips through trees up to 3 in. in diameter through the side feed chute, and brush up to 3/8 in. through the top-loading hopper

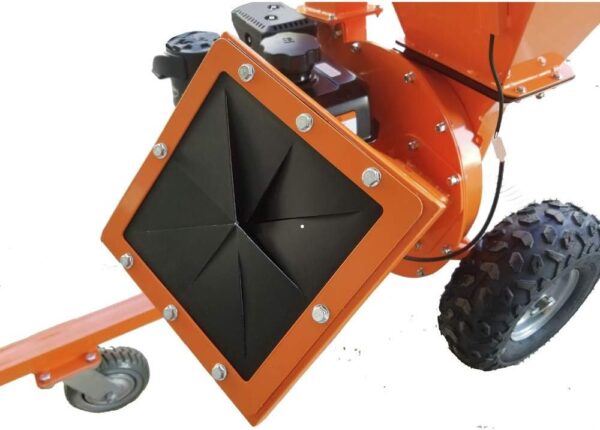

- Extra-large feed chutes
- Drop stand and handy removable tow bar with 2 in. ball coupler
- 145/70-6 13.75 in. O.D. x 5.25 in. tires on ATV-locking wheels with a 28 in. wheelbase
- Removable key shutoff
- 4:1 chipping ratio
- Includes 3-year KOHLER engine and 1-year DK2 chassis warranty
From the Manufacturer
- Replacement Part List
- Service and Repairs
- Warranty
- Installation Guide
- Use and Care Manual
Dimensions
Product Depth (in.)
70.86 in
Product Height (in.)
47.63 in
Product Width (in.)
36.22 in
Details
Bag/maximum load capacity (bushels)
0
Chipper blade material
Other
Chipper capacity (in.)
3
Commercial / Residential
Commercial
Condition
New
Engine Cycles
4 Cycle
Engine Displacement (cc)
208
Engine Torque (ft.-lb.)
10.5
Engine Type
7HP 208cc CH270 Kohler Commercial Engine
Features
Assembly Required, Replaceable Cutting Blade, Self-Feeding, Towable
Feed capacity (in.)
3
Fuel Tank Capacity (oz.)
128 oz
Horsepower (HP)
7 hp
Housing Material
Metal
Power Type
Gas
Product Weight (lb.)
187 lb
Reconditioned
No
Reduction Ratio
0
Returnable
30-Day
Self-Feeding
Yes
Start Type
Recoil Start
Translucent fuel tank
No
Wheels
Yes
Warranty / Certifications
Manufacturer Warranty
3-Year Commercial Engine Warranty/1-Year Chassis Warranty
