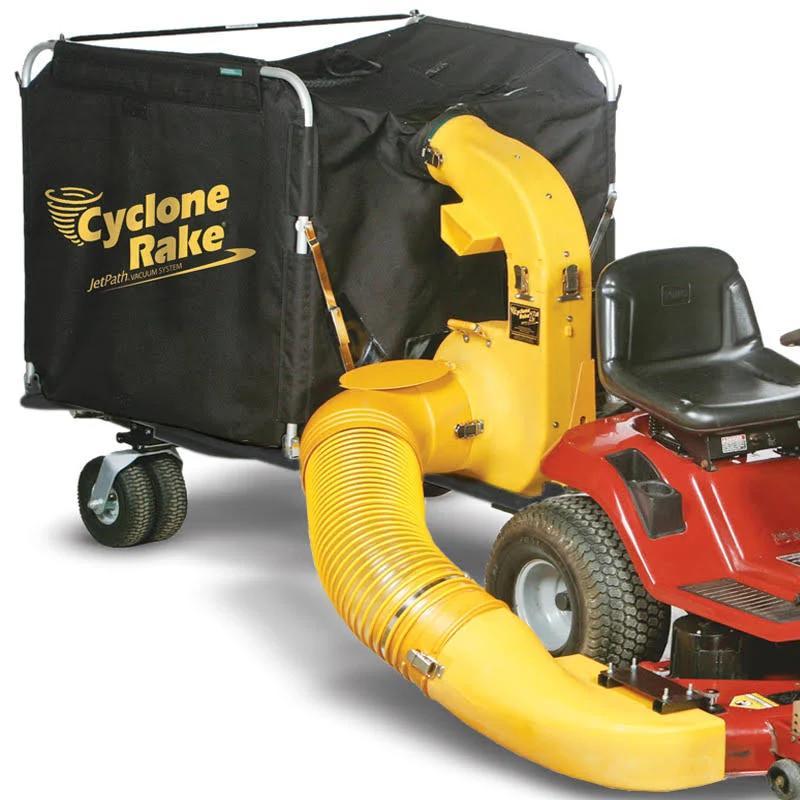

Cyclone Rake Commander
Make: Woodland Power Products, Inc.
Best for: 10 HP or larger Tractors
Recommended Deck: 36″ – 46″ mower deck widths
Vacuum System: 8- inch Diameter JetPath
Impeller: 4 – Blade Miracle Impeller
Collector Capacity: 285 gals /38 Cu.ft. /32 bushels
Collector Dumping Angle: 60o
Width: 43 inches
Height: 49 inches
Length: 73 inches
Unloading Method: Easy-Flow
Rigid Dumping Lock: Yes
Folds Flat: Yes
Towing
Hitch Type: 2 Pin Hitch- Never Jackknifes
Engine
Make: Briggs & Stratton XR950-PRO
Ft. Lbs Torque: 9.5 ft lbs torque
Displacement: 208 cc
Engine Type: OHV
Number of Cylinders: 1
Air Filter: Dual Element Cartridge
Pre Cleaner: Yes
Oil Capacity: 18-20 oz
Lubrication: Dura-Lube Splash Lubrication
Oil Type: SAE 30W HD
Engine RPM: 3600
Cooling Method: Air Cooled
Electric Start: Not Available
Warranty
Cyclone Rake Warranty: 2 years residential use
Engine Warranty: 2 years coverage from B & S
