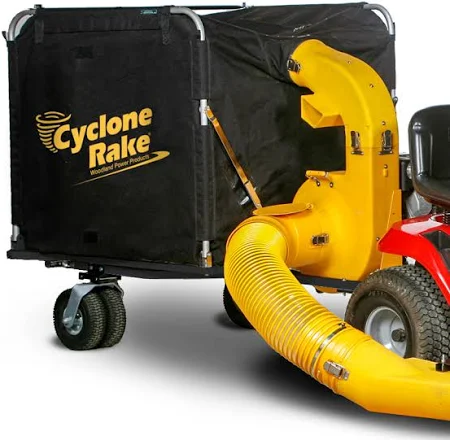

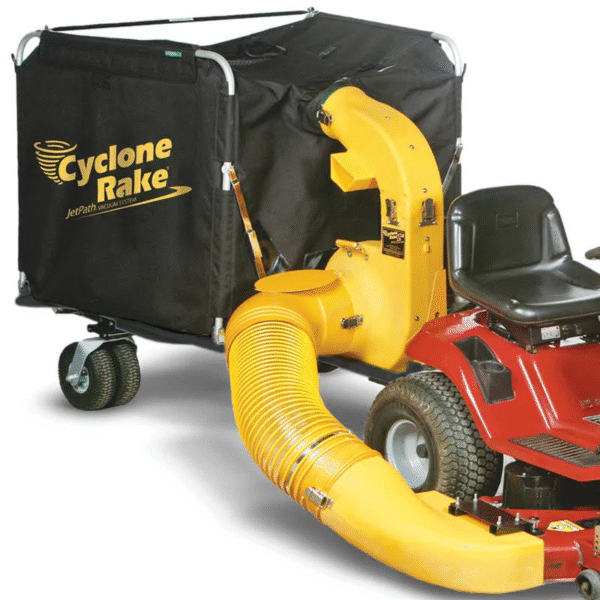

Cyclone Rake XL
Make: Woodland Power Products, Inc.
Best for: 16 HP or larger Tractors
Recommended Deck size: 42″ – 60″ mower deck widths
Vacuum System: 8- inch Diameter
Impeller: 5 – Blade Super-Flow Impeller
Collector Capacity: 415 gals /55 cu.ft. /44 bushels
Collector Dumping Angle: 60o
Width: 48 inches
Height: 54 inches
Length: 79 inches
Unloading Method: Easy-Flow
Rigid Dumping Lock: Yes
Folds Flat: Yes
Towing
Hitch Type: 2 Pin Hitch- Never Jackknifes
Engine
Make: Briggs & Stratton® Vanguard™
Ft. lbs Torque: 8 HP/13.4 ft lbs torque
Displacement: 305 cc
Engine Type: OHV
Number of Cylinders: 1
Air Filter: Dual Element
Pre Cleaner: Yes
Oil Capacity: 26-28 oz
Lubrication: Splash
Oil Type: SAE 30W HD
Engine RPM: 3600
Cooling Method: Air Cooled
Electric Start: Available
Warranty
Cyclone Rake Warranty: 3 years residential use
Engine Warranty: 3 years coverage from Briggs & Stratton
